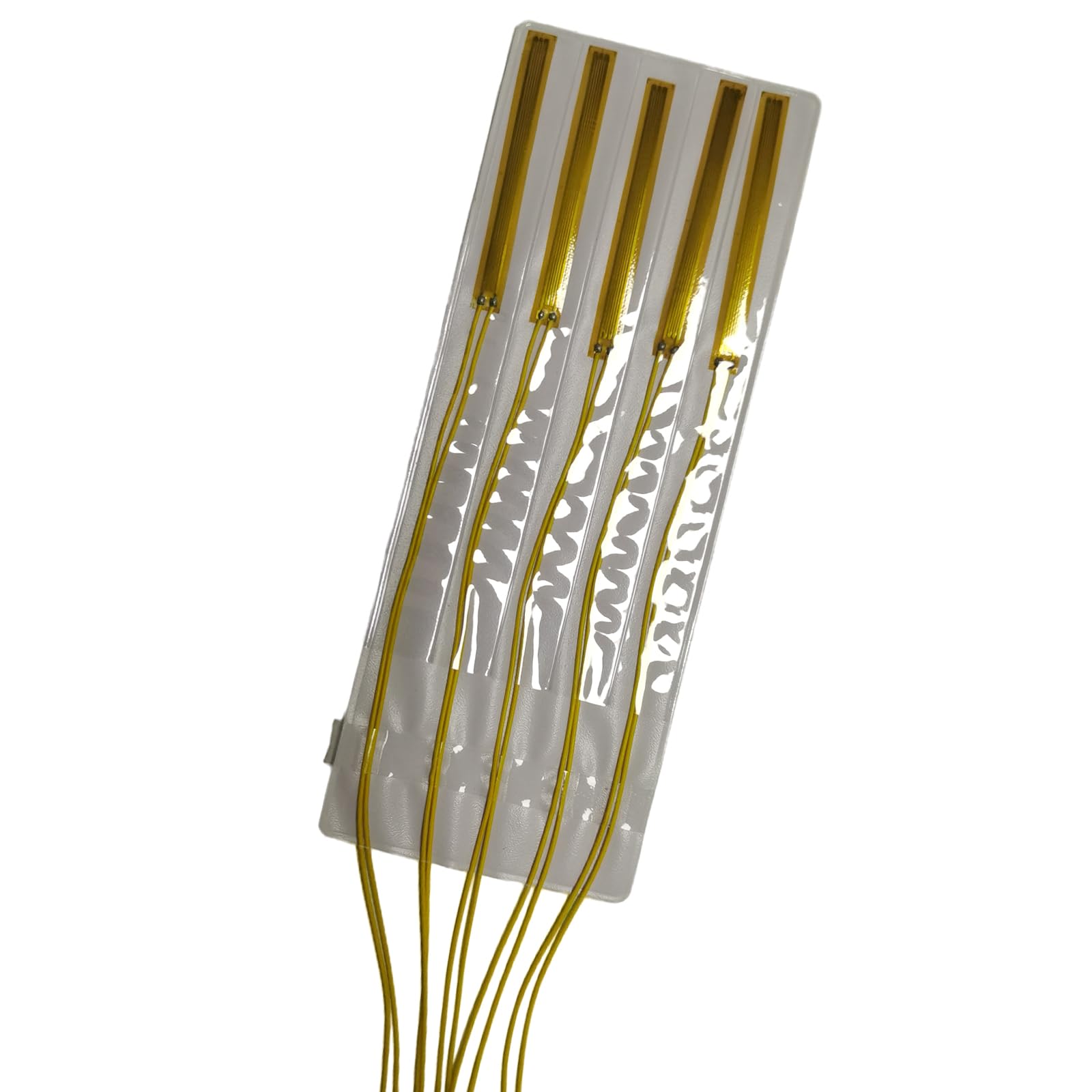

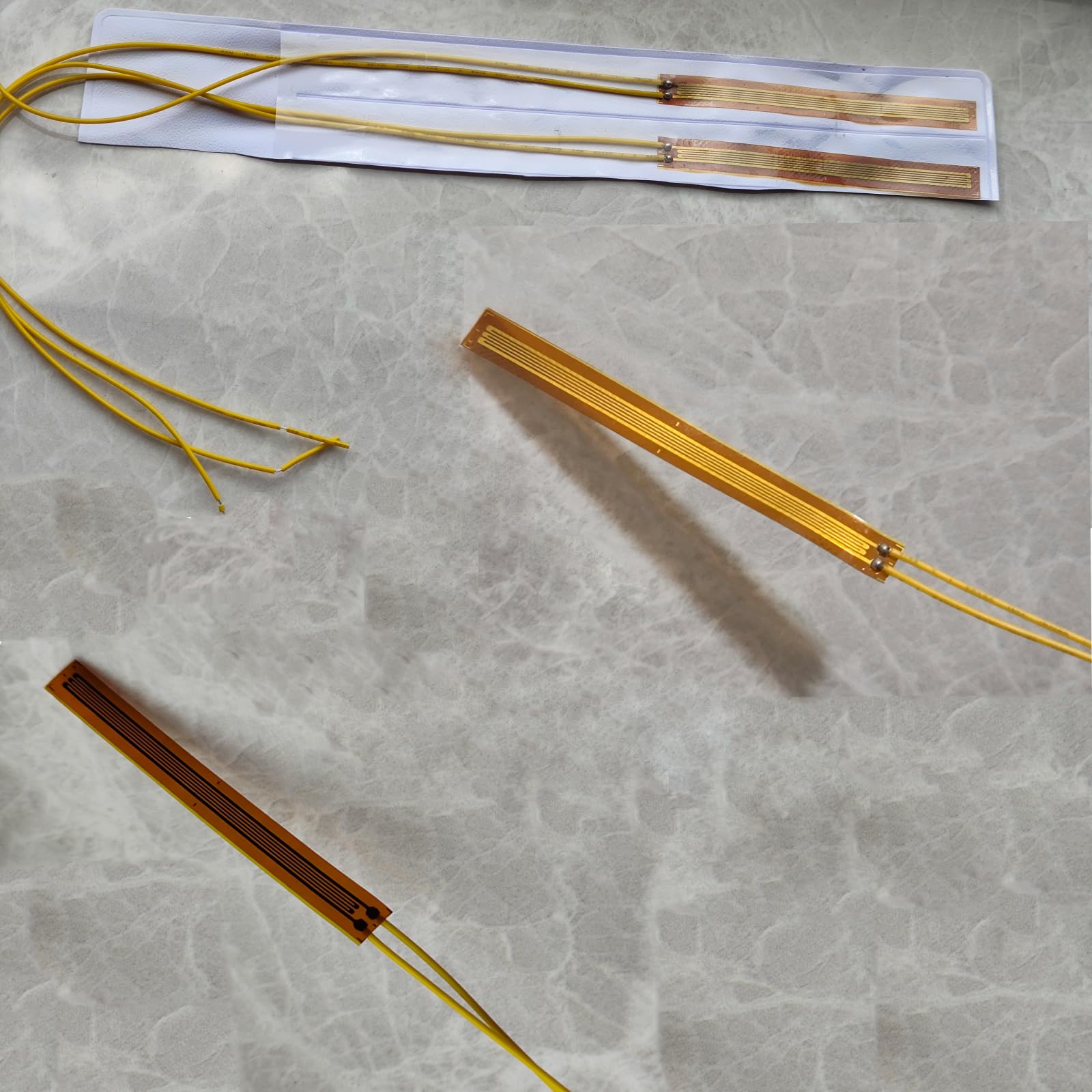

120 Ohm 50AA Foil Resistance Strain Gauge Sensor - 2 Pack for Load Cell, Pressure Measurement in Material Testing, Industrial Applications & Science Experiments | Perfect for Structural Analysis, Force Detection & Laboratory Research

$11.99

$15.99

Safe 25%

120 Ohm 50AA Foil Resistance Strain Gauge Sensor - 2 Pack for Load Cell, Pressure Measurement in Material Testing, Industrial Applications & Science Experiments | Perfect for Structural Analysis, Force Detection & Laboratory Research

$11.99

$15.99

25% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

10 people viewing this product right now!

SKU: 59858978

Guranteed safe checkout

Description

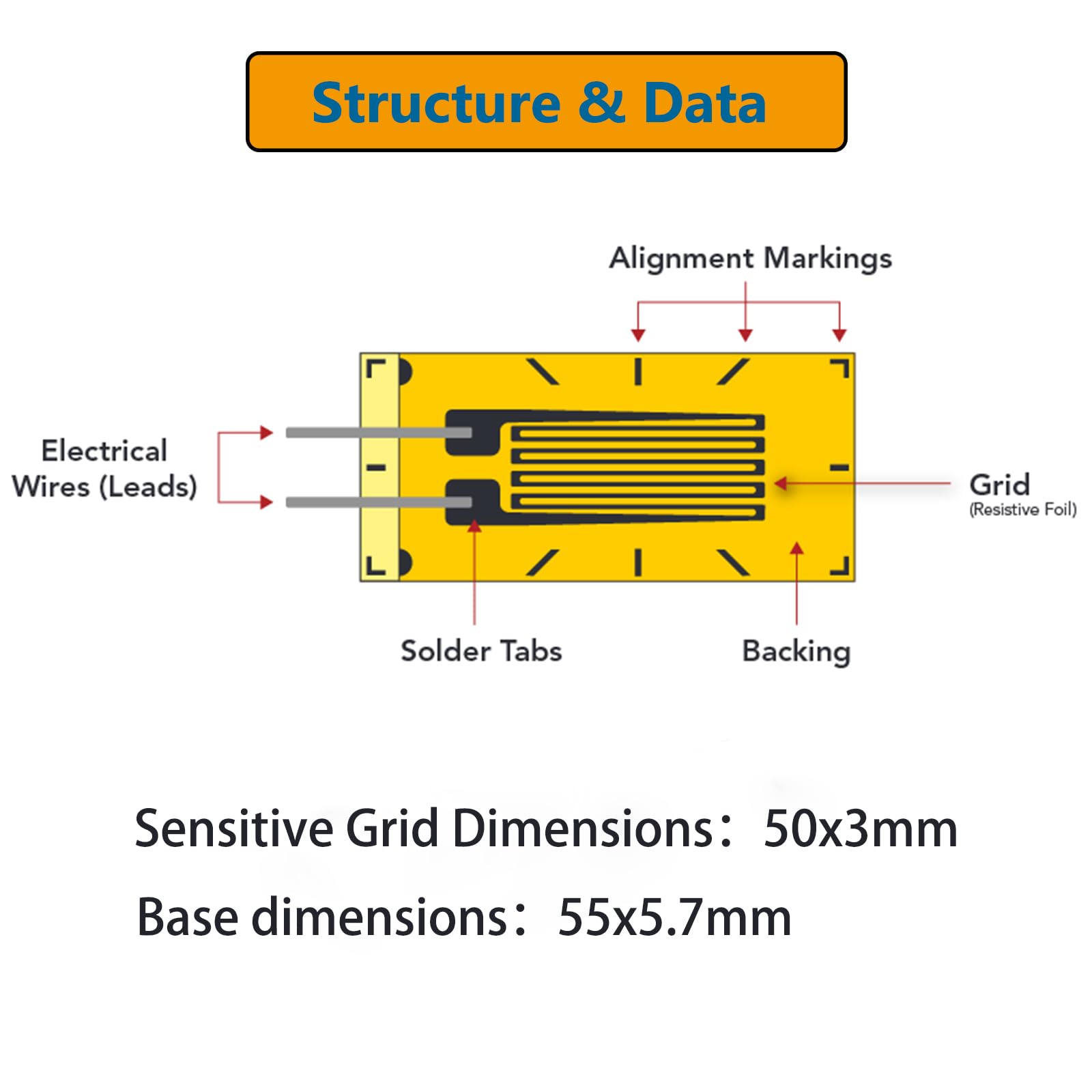

The linear strain gauges can be applied to most strain measurement applications. Used in mechanics experiment for material, industry or science, production, load cells, testing, R&D and strain/stress measurement, etc. Features: ● Clear alignment marks ● Ribbon leads termination ● Broad temperature range ● Good over-range capability ● Stable devices with fast response Technical Parameter Grid Style: Linear Shape: Rectangular Lead specification: 20cm PVC lead Operational temperature: -20~+80°C Gauge resistance: 120±0.2Ω Sensitivity coefficient: 2.08 ± 1% Base size: 3 x 50mm / 0.12 x 1.97inch Wire grid size: 5.7 x 50mm / 0.22 x 1.97inch Normal temperature strain limit: 20000 um/m Package Includes: 2 X Foil Resistance Strain Gauges

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

0.2-meter PVC leads and 120 Ω resistance, compatible with any dynamic or static strain gauge, such as YSV8316, YSV7008 and so on

Self-contained wires and long wires for testing are connected by means of crimping, without any soldering during the test

The main part is composed of sensitive grid and substrate with two external wires which connect to the machine without welding, easy to install

The small size makes it easy to dissipate heat, consumes less power per unit area, the pre-wired strain gauge can be used in measurement directly without pasting and soldering

Come with 2 pieces of strain gauges and wire terminal caps, widely used in mechanical experiments for materials, industry or science
