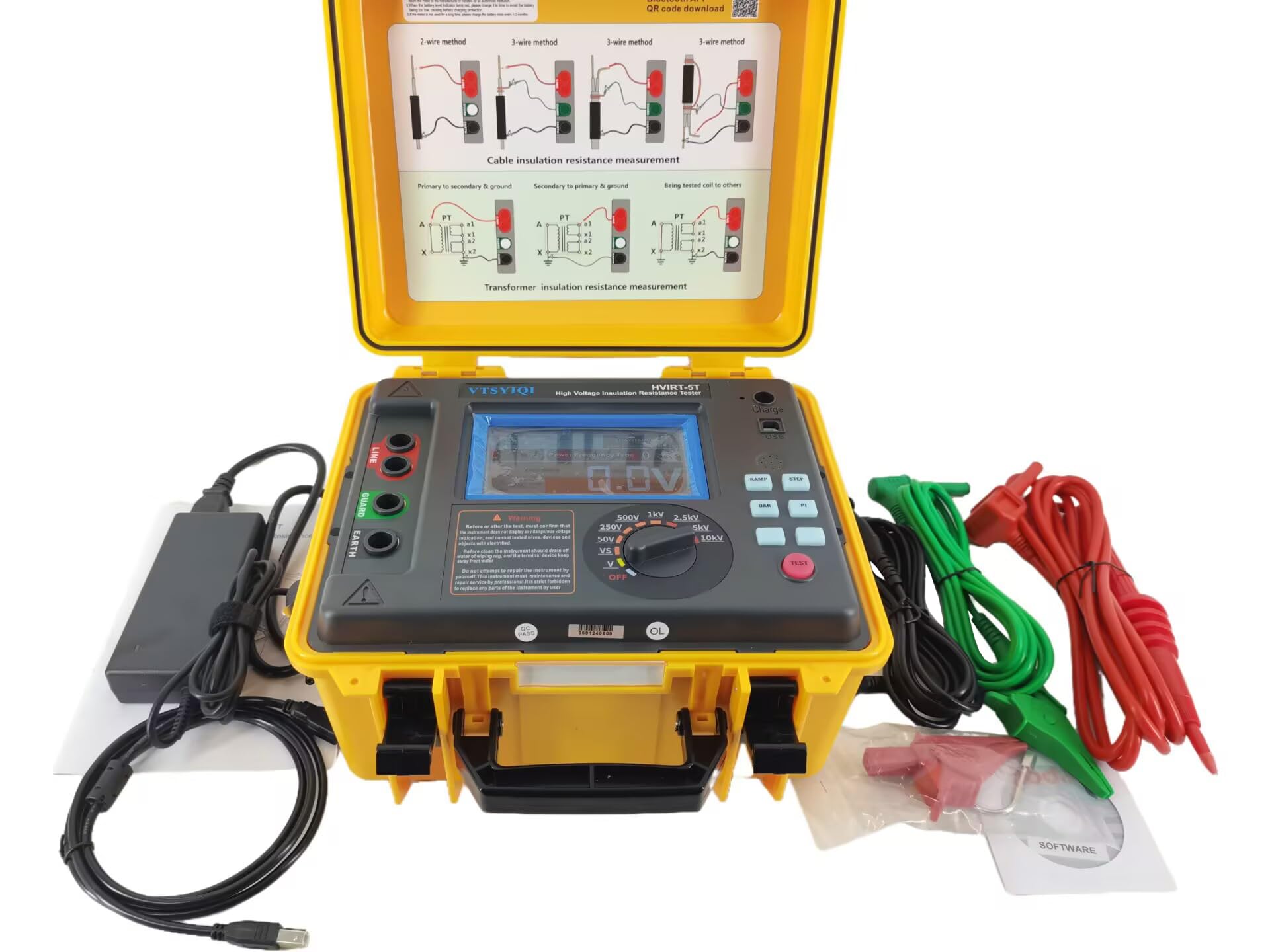

VTSYIQI High Voltage Insulation Tester Insulation Resistance Tester with 5kV ... High Voltage Insulation Tester Insulation Resistance Tester Kit 10 Teraohms R... VTSYIQI High Voltage Insulation Resistance Tester 5kV Insulation Resistance T... VTSYIQI High Voltage Insulation Tester Insulation Resistance Tester Kit Megoh... VTSYIQI High Voltage Insulation Resistance Tester 15 kv Insulation Tester Met... Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 5.0 out of 5 stars 1 — — — Price $630.00$630.00 $744.00$744.00 $1,100.00$1,100.00 $1,410.00$1,410.00 $1,699.90$1,699.90 Rated Voltage 250V, 500V, 1000V, 2500V, 5000V 250V, 500V,1000V,2500V, 5000V,10KV 250v,500v,1000v,2500v,5000v 250v,500v,1000v,2500v, 5000v,10Kv 250V,500V,1000V，2500V,5000V,10KV,15KV Output Voltage Accuracy (5%rdg ～ 10%rdg）±10V (5%rdg ～ 10%rdg）±10V （5%rdg～10%rdg）±10V （5%rdg～10%rdg）±10V （5%rdg～10%rdg）±10V Insulation Resistance Range 0.50MΩ～2.00TΩ 0.50MΩ～ 5.00TΩ 0.50MΩ～10.0TΩ 0.50MΩ~20.0TΩ 0.50MΩ~30.0TΩ Short Circuit Current ≥5mA Max ≥5mA Max ≥7mA Max ≥7mA Max ≥7mA Max USB ✓ ✓ ✓ ✓ ✓ VTSYIQI High Voltage Insulation Tester Insulation Resistance Tester Kit 10 Teraohms Resistance 10kV Voltage Main feature Max Output Voltage 50V~10kV Test Resistance 0.005MΩ～10TΩ Max Short Circuit Current 5mA Polarization Index Test（PI） Dielectric Absorption Ratio Test（DAR） Step Test Mode(STEP) Ramp Test Mode (RAMP) Custom Setting Output Voltage Custom Setting Test Time 10s~60min Large Capacity Rechargeable Lithium Battery USB Communication Bluetooth Communication Product Function Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment. Insulation resistance test (IR); polarization index test (PI); Dielectric absorption ratio test (DAR); Step test(STEP); Ramp test (RAMP). AC/DC Voltage test(V). Product Features 1. Touch colorful screen, and the test data will be displayed on the same screen. It is very convenient to test operation and view history record. 2. With the unique strong anti-interference technology and stable testing capabilities in large distributed capacitance site (such as long cables) and strong electromagnetic interference environments (such as substations). 3. Perfect measurement index: insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step (STEP), ramp (RAMP), AC/DC voltage (V). 4. Custom setting measurement mode, optional PI and DAR calculation formulas, custom setting test voltage and custom setting test duration, which can provide variety of options to user and convient the special site request. 5. Voltage monitor: Automatically monitoring the live voltage of the measured object. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator. 6. Current monitor: Automatic display the current of test circuit 7. Temperature monitor: Automic display the temperature and humidity of tester inside. 8. Automatic discharge function, automatically and quickly release the electric charge of the measured object after the test, no need the external discharge circuit. 9. Large-capacity test record memory, test records can be directly browsed and analyzed in the tester. the tester can automatically store 1000 sets of real-time test data with test date and test time. 10. USB communication and upload function, the recorded data can be uploaded to the computer for stored statistical analysis. 11. Bluetooth communication function, can upload the test results to the mobile phone. Product Function Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment. Insulation resistance test (IR); polarization index test (PI); Dielectric absorption ratio test (DAR); Step test(STEP); Ramp test (RAMP). AC/DC Voltage test(V). Product Features 1. Touch colorful screen, and the test data will be displayed on the same screen. It is very convenient to test operation and view history record. 2. With the unique strong anti-interference technology and stable testing capabilities in large distributed capacitance site (such as long cables) and strong electromagnetic interference environments (such as substations). 3. Perfect measurement index: insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), step (STEP), ramp (RAMP), AC/DC voltage (V). 4. Custom setting measurement mode, optional PI and DAR calculation formulas, custom setting test voltage and custom setting test duration, which can provide variety of options to user and convient the special site request. 5. Voltage monitor: Automatically monitoring the live voltage of the measured object. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator. 6. Current monitor: Automatic display the current of test circuit 7. Temperature monitor: Automic display the temperature and humidity of tester inside. 8. Automatic discharge function, automatically and quickly release the electric charge of the measured object after the test, no need the external discharge circuit. 9. Large-capacity test record memory, test records can be directly browsed and analyzed in the tester. the tester can automatically store 1000 sets of real-time test data with test date and test time. 10. USB communication and upload function, the recorded data can be uploaded to the computer for stored statistical analysis. 11. Bluetooth communication function, can upload the test results to the mobile phone. Specification Power Supply :Rechargeable lithium battery pack 5.2Ah 14.8V Rated Voltage :50V，250V，500V，1000V，2500V，5000V，10kV Output Voltage Accuracy:（5%～10%）±10V Insulation Resistance Range:0.005MΩ～10.00TΩ Short Circuit Current:5mA MAX Voltage Measurement:Range: 0V~1000V; Accuracy: ±5%rdg±3V Custom Setting Output Voltage:3500：40～kV，3500B：40V～5kV Customs Setting Test Time:10s～3600s Polarization Index (PI):Yes Dielectric Absorption Ratio (DAR):Yes Step Voltage(STEP) :Yes Ramp( RAMP) :Yes Real Time Current Display:Display test current value, current range: 0.001nA～5 mA Real Time Voltage Display:Real time monitoring the voltage of the measured terminal. when the voltage exceed 36V and will automatically prohibit to test to effectively protect the instrument and the operator. Test Timer:Automatic record test time, time range: 0s~9999s Storage Function:Automatically store the test data total of 1000 groups, which can display, replay store test record USB Communication:Yes, upload the test record to PC through the USB cable Bluetooth Communication:Yes, can connect to the Android mobile or others with the buletooth communication device Battery Power Indication:With the battery power indication, when battery voltage low will remind to charge in time Automatic Shutdown:After 15 minutes start up will shut down automatically without any operation Tester Dimension:280mm×260mm×160mm Tester Weight :Host: 3344g(with rechargeable battery); total weight:5.6kg(include all accessories) Protection Level:Close the case IP65, open the case IP40 Working Environment:-20℃～50℃；80%rh Withstand Voltage:AC 3KV 50Hz 1min（between the test circuit and shell） Withstand Voltage:AC 3Kv 50Hz 1min（between the test circuit and shell） Suitable Safety Standard:IEC61010-1，IEC61326-1 Accessories:Host: 1PCS, high voltage test wire: 1PCS, Test wire (green): 1PCS; Test wire (black): 1PCS; Alligator clip: 1PCS; Hook 1PCS; Power adaptor 1PCS; USB communication cable 1PCS; Tool bag: 1PCS
